Our Products / Farm Bike Trailers

Trailers on this website are our standard models. All specialised trailers can be built to your own requirements and specifications. Brent Smith Trailers retains the righs to change specification or design.
66 Nannestads Line
RD5 Bunnythorpe
New Zealand
(06) 3292 772

B.S. 4C

MODEL NUMBER: B.S. 4C
Sizes:-

1.2m x 0.970m


Tare:-

130kg

GVM: 400kg

Additional Information
  • 22x11x8 flotation tyres
  • Pressed steel sides & drop tailgate
  • Fixed stock crate with front and rear opening and removable gates
  • Deck BD Tanalised
Optional Extras
Call us now: (06) 3292 772

B.S. 5C

MODEL NUMBER: B.S. 5C
Sizes:-

1.5m x 1.1m
1.8m x 1.2m


Tare:-

155kg

225kg

GVM: 400kg

Additional Information
  • 22x11x8 flotation tyres
  • Pressed steel sides & drop tailgate
  • Fixed stock crate with front and rear opening and removable gates
  • Deck BD Tanalised
Optional Extras
Call us now: (06) 3292 772

Roof Tray on Trailer

MODEL NUMBER: ROOF
Sizes:-

1.2m x 0.970m – 1.5m x 1.1m


Tare:-

153kg

GVM: 400kg

Additional Information
  • Pressed steel sides
  • Permanent crate
  • Rear sliding gate – removable
Optional Extras
Call us now: (06) 3292 772

Working Dog Trailer

MODEL NUMBER: B.S. 2
Sizes:-

1.2m x 0.970m - 1.5m x 1.1m


Tare:-

153kg

GVM: 400kg

Additional Information
  • Pressed steel sides
  • Permanent crate
  • Rear sliding gate - removable
  • Ply front panel
  • Waterproof cover
  • Deck BD Tanalised
Optional Extras
Call us now: (06) 3292 772

Winged Warrior 700

MODEL NUMBER: B.S. WW 700
Sizes:-

1.2m x 0.7m


Tare:-

122kg with crate - crate 29kg

GVM: 400kg

Additional Information
  • 22x11x8 flotation tyres
  • Press steel sides & drop tailgate
  • Stock crate - 'Clip-in' 4- piece Removable crate with rear gate also fitting centre position
  • Deck BD Tanalised
  • Tie downs supplied
Optional Extras
Call us now: (06) 3292 772

Winged Warrior 1.0m

MODEL NUMBER: B.S. WW 1.0
Sizes:-

1.2m x 1.0m


Tare:-

135kg with crate - crate 31kg

GVM: 400kg

Additional Information
  • 22x11x8 flotation tyres
  • Press steel sides & drop tailgate
  • Stock crate - 'Clip-in' 4- piece Removable crate with rear gate also fitting centre position
  • Deck BD Tanalised
  • Tie downs supplied
Optional Extras
Call us now: (06) 3292 772

Winged Warrior 1.5m

MODEL NUMBER: B.S. WW 1.5
Sizes:-

1.5m x 1.0m


Tare:-

151kg with crate - crate 37kg

GVM: 400kg

Additional Information
  • 22x11x8 flotation tyres
  • Press steel sides & drop tailgate
  • Stock crate - 'Clip-in' 4- piece Removable crate with rear gate also fitting centre position
  • Deck BD Tanalised
  • Tie downs supplied
Optional Extras
Call us now: (06) 3292 772

Winged Warrior 1.8m

MODEL NUMBER: B.S. WW 1.8
Sizes:-

1.8m x 1.2m


Tare:-

192kg with crate - crate 44kg

GMV: 400kg

Additional Information
  • 22x11x8 flotation tyres
  • Press steel sides & drop tailgate
  • Stock crate - 'Clip-in' 4- piece Removable crate with rear gate also fitting centre position
  • Deck BD Tanalised
  • Tie downs supplied
Optional Extras
Call us now: (06) 3292 772

Tandem Bike Trailers

MODEL NUMBER: B.S. TANDEM 1.8
Sizes:-

1.8 x 1.2m - TARE 223kg
2.1 x 1.2m - TARE 231kg
2.4 x 1.2m - TARE 246kg
2.4 x 1.4m - TARE 287kg
3.0 x 1.4m - TARE 321kg


Tare:-

GVM: 400kg

Additional Information
  • 22x11x8 flotation tyres
  • Press steel sides & drop tailgate
  • Equalising tandem system
  • Sliding rear gate
  • Removable stock crate - 'Clip-in' 4- Piece
  • Tie downs supplied
  • All steel chassis and frame
  • Hot dipped galvanised
  • Deck BD Tanalised
Optional Extras
  • Jockey stand
  • Centre gate
Call us now: (06) 3292 772

Irrigation K.Line Mover

MODEL NUMBER: B.S. K-LINE MOVER
Sizes:-

Tare:-
Additional Information
  • Hot dipped galvanised
  • 18 x 950 x8 flotation tyres
Optional Extras
Call us now: (06) 3292 772

Flat Deck Tandem Trailers

MODEL NUMBER: B.S. FD TANDEM 1.8
Sizes:-

1.8m x 1.2m - 2.1m x 1.2m
2.4m x 1.2m


Tare:-

GVM: 800kg

Additional Information
  • 22x11x8 flotation tyres
  • Pressed steel sides & drop tailgate
  • Equalising tandem system
  • Sliding rear gate
  • Removable stock crate - 'Clip-in' 4- Piece
Optional Extras
  • Jockey stand
  • Centre gate
  • Stock crate
Call us now: (06) 3292 772

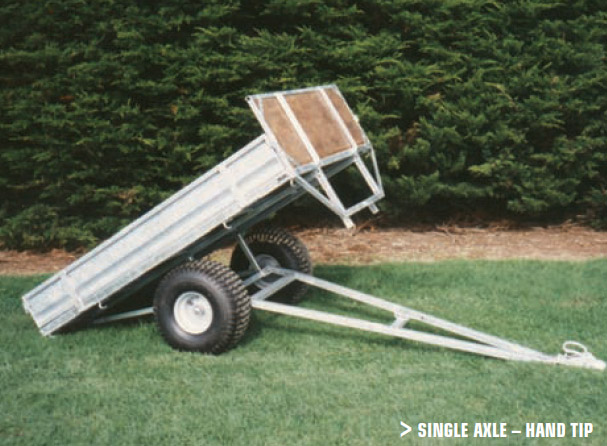

Flat Deck Single Axle

MODEL NUMBER: B.S. FD SINGLE HT
Sizes:-

1.8 x 1.2m - 2.1m x 1.2m
2.4m x 1.2m


Tare:-
Additional Information
  • Hand Tip
  • Headboard
  • 22x11x8 flotation tyres
  • Press steel sides & drop tailgate
  • Sides and tailgate removable
  • Deck BD Tanalised
Optional Extras
  • Jockey stand
  • Stock crate
Call us now: (06) 3292 772

Turntable Trailers

MODEL NUMBER: B.S. T TABLE 2.1
Sizes:-

2.1m x 1.2m - 1 Pen

3.0m x 1.5m - 2 pens


Tare:-

GVM: 800kg

Additional Information
  • 22x11x8 flotation tyres
  • Pressed steel sides & drop tailgate
  • Stock crate - 'Clip-in' 4-Piece Removable crate with rear gate also fitting centre position
  • Deck DB Tanalised
  • Tie downs
Optional Extras
  • Stock cover
  • Centre Gate
Call us now: (06) 3292 772

Flat Deck Turntable Trailers

MODEL NUMBER: B.S. FB T TABLE 3.5
Sizes:-

3.5m x 1.5m - 2 Pens


Tare:-

GMV: 800kg

Additional Information
  • 22x11x8 flotation tyres
  • Pressed steel sides & drop tailgate
  • ‘Clip-in’ 4-piece stockcrate. Side doors two centre gates & rear door
  • Deck DB Tanalised
  • Tie downs
Optional Extras
  • Waltex box
  • Stock cover
Call us now: (06) 3292 772

Extra Large Flat Deck Trailers

MODEL NUMBER: B.S. FLAT DECK 5.4
Sizes:-

5.4m x 1.8m - 3 Pens


Tare:-

766kg

GVM: 1600kg

Additional Information
  • Hot dipped galvanised
  • 22x11x8 flotation tyres (x8 wheels)
  • 'Clip-in' crate with 3 pens, 3 side doors and 1 rear door
  • Deck DB Tanalised
Optional Extras
  • Stock Cover

Brent Smith Trailers carry a Two Year Warranty against defects in materials or workmanship. M&M Log Splitters carry a One Year Warranty.

Brent Smith Trailers will repair the trailer, or the defective part of the trailer/log splitter can be returned with the freight paid to Brent Smith Trailers Ltd. Damage due to misuse, neglect, lack of maintenance, general wear and tear or modifications are not covered by this warranty.

BRENT SMITH TRAILERS HAVE A WARRANTY FROM DATE OF PURCHASE, AGAINST MATERIAL DEFECTS AND WORKMANSHIP, FOR 2 YEARS IF THE TRAILER OR PART IS RETURNED TO THE MANUFACTURER.

Brent Smith Trailers was the winner of the HIANZ 2022 Hire product of the Year award.

Welcome to Brent Smith Trailers we are specialists of bike trailers, car trailers, heavy duty commercial trailers, tipping trailers and ute decks, canopy trailers, horse floats, dog trailers and boxes. We are a 100% owned and operated NZ family business and have had one owner for over 35 years.

100% New Zealand Owned and Operated. All of our trailers are built in our local Factory.
